X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net

X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net
X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net

Large Image :  X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net Get Best Price

Product Details:
Place of Origin: Hebei
Brand Name: wanchi
Certification: SGS ISO9001
Model Number: FM-013
Payment & Shipping Terms:
Minimum Order Quantity: 100 rolls
Price: Negotiation
Packaging Details: Usually, the mesh will be rolled and packed into the P.P. woven bags,the size of bulk roll is approx
Delivery Time: 7 days after payment received
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 rolls per week
Detailed Product Description
Material: 304,316 Technique: Weave
Specification: 7*7 7*19 Feature: Corrosion Resistance
Rope Diameter: 1.2mm,1.5mm,1.6mm Aperture: 20mm-100mm
High Light:

stainless steel ferrule mesh

,

stainless steel diamond mesh

X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net​


Product Details


Place of OriginHebei, China (Mainland)
Materialtainless Steel Wire
TypeRope Mesh
ApplicationWoven Wire Mesh, Construction of Animal Enclosure,Animal Cage,Aviary
Weave StylePlain Weave
Wire Diameter1.2MM-3.2MM
TechniqueWoven
Model NumberRM-133
Brand Namewanchi
Wire Rope Construction7*7,7*19
Opening size1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
aviary mesh featureLightweight, high-strength, never rust, softness



The advantage of the stainless steel wire rope mesh
1. The netting is clipped to the cable.
2 .The hole size and diameter can be modified.
3. It can be made to customer orders and statically tested – especially suitable for facades.
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. Without toxic material, safety, environmental protection.


Specification

Material:
stainless steel type 304, 304L, 316, 316L
Structure:
7x7 and 7x19
Standard cable diameter:
1/8", 3/32", 1/16", and 3/64"
Standard mesh opening size:
1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"



The list of Stainless Steel Wire Rope Mesh (knotted mesh)Material made of S.S 304 or 316 and 316L
CodeWire Rope ConstructionMin. Breaking Load
(KN)
Wire Rope DiameterAperture
InchmmInchmm
WCH-32107x198.7351/83.24" x 4"102 x 102
WCH-32767x198.7351/83.23" x 3"76 x 76
WCH-32507x198.7351/83.22" x 2"51 x 51
WCH-24107x75.3153/322.44" x 4"102 x 102
WCH-24767x75.3153/322.43" x 3"76 x 76
WCH-24507x75.3153/322.42" x 2"51 x 51
WCH-20767x73.5955/642.03" x 3"76 x 76
WCH-20507x73.5955/642.02" x 2"51 x 51
WCH-20387x73.5955/642.01.5" x 1.5"38 x 38
WCH-16767x72.2451/161.63" x 3"76 x 76
WCH-16507x72.2451/161.62" x 2"51 x 51
WCH-16387x72.2451/161.61.5" x 1.5"38 x 38
WCH-16257x72.2451/161.61" x 1"25.4 x 25.4
WCH-12507x71.363/641.22" x 2"51 x 51
WCH-12387x71.363/641.21.5" x 1.5"38 x 38
WCH-12257x71.363/641.21"x1"25.4x25.4
WCH-12207x71.363/641.24/5"x4/5"20x20

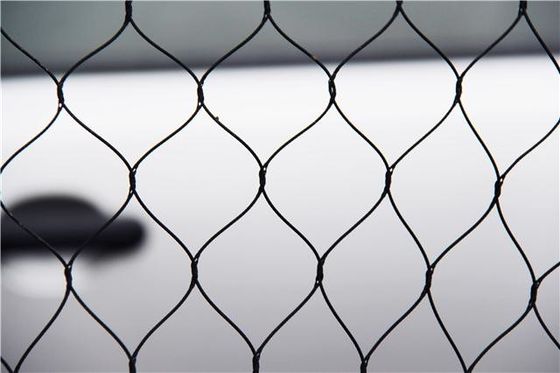

Photo Show

X Tend Stainless Steel Ferruled Mesh on board Corrosion Resistance For Protective Net 0
