Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing

Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing

Large Image :  Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing Get Best Price

Product Details:

Place of Origin: Hebei
Brand Name: wanchi
Certification: SGS ISO9001
Model Number: BM-004

Payment & Shipping Terms:

Minimum Order Quantity: 50 square meter
Price: Negotiation
Packaging Details: PP film inside and wooden case outside
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 500+square meter+per week
Detailed Product Description
Material: Stainless Steel Wire 304 Or 316 Rope Construction: 7x7 7x19
Rope Diameter: 1.2mm-3.2mm Aperture: 20mm
Color: Silver Mesh Size: Custom-made
High Light:

balustrade safety netting

,

banister safety netting

Custom Size Stainless Steel Rope Balustrade Mesh In The Downstairs



Description



Stainless steel rope net (roof fence net) (roof protection net) (roof soft net) (roof flexible net) is made of stainless steel rope twisted up and down and extruded with a steel sleeve. The diameter of the wire rope is 1.0, 1.5, 2.0 , 3.0mm, wire rope structure is 7 * 7, 7 * 19, 1 * 19, etc., and the material is 304, 316, 316L. Secondly, we can also provide hot-dip galvanized wire rope mesh products. The material of the steel sleeve is mainly stainless steel sleeve, and there are aluminum sleeve, copper sleeve and copper tinned sleeve for customers' choice.


Speacification



Code Rope Construction Rope Diameter Aperture Breaking Force
Inch mm mm kN
WANCHI-01 7X19 1/8 3.2 120X208 7.38
WANCHI-02 7X19 1/8 3.2 100X173 7.38
WANCHI-03 7X19 1/8 3.2 90X156 7.38
WANCHI-04 7X7 3/32 2.4 100X173 4.18
WANCHI-05 7X7 3/32 2.4 90X156 4.18
WANCHI-06 7X7 3/32 2.4 80X139 4.18
WANCHI-07 7X7 3/32 2.4 70X121 4.18
WANCHI-08 7X7 5/64 2.0 100X173 3.17
WANCHI-09 7X7 5/64 2.0 90X156 3.17
WANCHI-10 7X7 5/64 2.0 80X139 3.17
WANCHI-11 7X7 5/64 2.0 70X121 3.17
WANCHI-12 7X7 1/16 1.6 80X139 2.17
WANCHI-13 7X7 1/16 1.6 70X121 2.17
WANCHI-14 7X7 1/16 1.6 60X104 2.17
WANCHI-15 7X7 1/16 1.6 50X87 2.17
WANCHI-16 7X7 3/64 1.2 80X139 1.22
WANCHI-17 7X7 3/64 1.2 60X104 1.22
WANCHI-18 7X7 3/64 1.2 50X87 1.22
WANCHI-19 7X7 3/64 1.2 40X69 1.22



About accessories



Main installation accessories: stainless steel standard parts, stainless steel wire rope, stainless steel collar, stainless steel buckle, etc. After installation, no maintenance is required at a later stage.
Attention should be paid during installation: the distribution of accessories is reasonable, pay attention to the bearing capacity, and the angle of the net surface is reasonable. Be sure to install each standard part and other mounting accessories firmly. The net connection must be tight and there should be no exposed head.



Photo Show

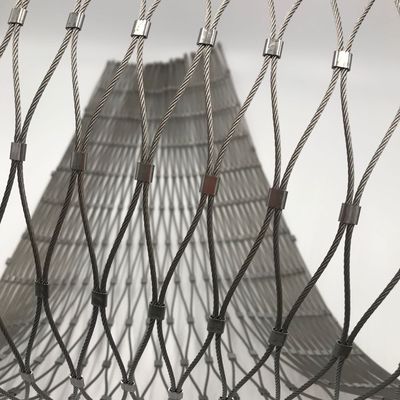

Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing 0

Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing 1

Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing 2
