Knotted Stainless Steel Rope Mesh Net Safety 20mm - 100mm Aperture
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Silver,Black,etc | Material: | 304 Or 316 |
|---|---|---|---|
| Technology: | Woven | Rope Diameter: | 1.2mm-2.0mm |
| Mesh Type: | Knotted | Aperture: | 20mm-100mm |
| High Light: | stainless steel wire rope fence mesh,stainless steel wire rope net |
||
Knotted Durable Stainless Steel Rope Mesh With Varios Of Rope Construction
The describe of our product
You can choose every color and type of stainless steel rope net that you need. We can produce stainless steel rope mesh according the shape ,size that you need.
Product applications
Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.
Stainless steel wire rope mesh used for wide range of application: bird net, zoo, greenhouse, airport, farm fencing, decoration in hall, green wall series, stair protection, and so on. It is safe, light weight, long service life, rustless, high-strength, ect. There are three types: weaven type, open ferrule type and seamless sleeves type.
Advantage
| 1. Excellent heat resistant and high intensity 2. High strength and strong integration 3. Flat and smooth surface combined with firm structure 4. Perfect anti - rust property 5. Stay holistic even cut into fragmented parts 6. Long use life |
|
Surface treatment available
|
Product feature
High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
specification
| The list of Stainless Steel Wire Rope Mesh (knotted mesh)Material made of S.S 304 or 316 and 316L | ||||||
| Code | Wire Rope Construction | Min. Breaking Load (KN) |
Wire Rope Diameter | Aperture | ||
| Inch | mm | Inch | mm | |||
| YT-3210 | 7x19 | 8.735 | 1/8 | 3.2 | 4" x 4" | 102 x 102 |
| YT-3276 | 7x19 | 8.735 | 1/8 | 3.2 | 3" x 3" | 76 x 76 |
| YT-3250 | 7x19 | 8.735 | 1/8 | 3.2 | 2" x 2" | 51 x 51 |
| YT-2410 | 7x7 | 5.315 | 3/32 | 2.4 | 4" x 4" | 102 x 102 |
| YT-2476 | 7x7 | 5.315 | 3/32 | 2.4 | 3" x 3" | 76 x 76 |
| YT-2450 | 7x7 | 5.315 | 3/32 | 2.4 | 2" x 2" | 51 x 51 |
| YT-2076 | 7x7 | 3.595 | 5/64 | 2.0 | 3" x 3" | 76 x 76 |
| YT-2050 | 7x7 | 3.595 | 5/64 | 2.0 | 2" x 2" | 51 x 51 |
| YT-2038 | 7x7 | 3.595 | 5/64 | 2.0 | 1.5" x 1.5" | 38 x 38 |
| YT1676 | 7x7 | 2.245 | 1/16 | 1.6 | 3" x 3" | 76 x 76 |
| YT-1650 | 7x7 | 2.245 | 1/16 | 1.6 | 2" x 2" | 51 x 51 |
| YT-1638 | 7x7 | 2.245 | 1/16 | 1.6 | 1.5" x 1.5" | 38 x 38 |
| YT-1625 | 7x7 | 2.245 | 1/16 | 1.6 | 1" x 1" | 25.4 x 25.4 |
| YT-1250 | 7x7 | 1.36 | 3/64 | 1.2 | 2" x 2" | 51 x 51 |
| YT-1238 | 7x7 | 1.36 | 3/64 | 1.2 | 1.5" x 1.5" | 38 x 38 |
| YT-1225 | 7x7 | 1.36 | 3/64 | 1.2 | 1"x1" | 25.4x25.4 |
| YT-1220 | 7x7 | 1.36 | 3/64 | 1.2 | 4/5"x4/5" | 20x20 |

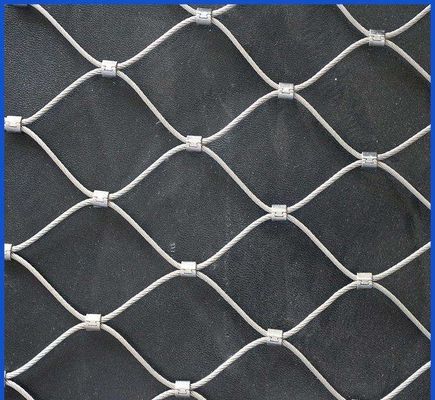

Photo Show
