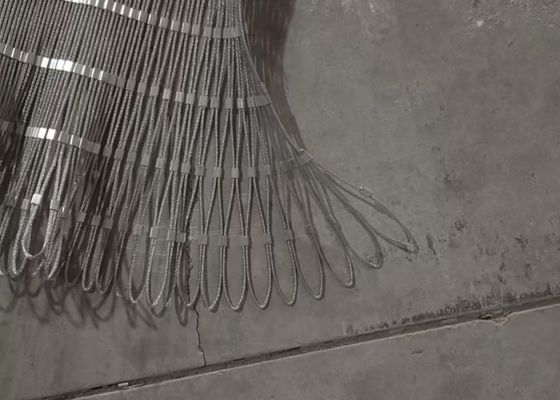

1.2mm SS 7*19 Mesh Size 20mm Flexible Stainless Steel Cable Mesh For Fence

• Available in 304, 304L, 316, and 316L stainless steel grades
• Manufacturing processes include hand-woven, closed mouth, and open buckle

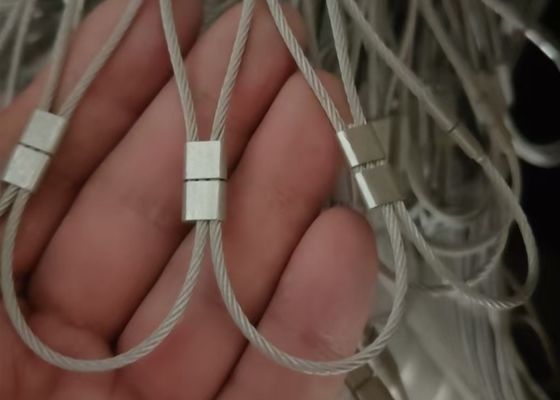

• Assembled with 100% seamless rope ferrules for durability
• Optimal stretch at 60° angle for flexible installation
• Special border design for easy installation
• Customizable wire diameters from 1.0-4.0mm (standard sizes: 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.2mm, 4mm)
• Mesh sizes available from 20-300mm

Our stainless steel cable mesh provides safety protection solutions for:

• Footbridges and pedestrian walkways
• Highway and suspension bridges
• Fall prevention systems
• Custom architectural designs with optional glitter or LED modules

Constructed with high-strength materials for excellent durability and tensile strength.

• Wire diameter: 2-3.2 mm
• Hole size: 50-100 mm (distance between adjacent mesh knots)
• Wire rope structure: 7 × 19 or 7 × 7
• Surface treatment: Galvanized or PVC coated
• Packaging: Folded square bundles wrapped in plastic on pallets or coiled in wooden cases

• Weather-resistant construction withstands harsh conditions
• Exceptional durability with over 30 years service life
• Eco-friendly and cost-effective solution
• Modern aesthetic for zoo and animal sanctuary enclosures
