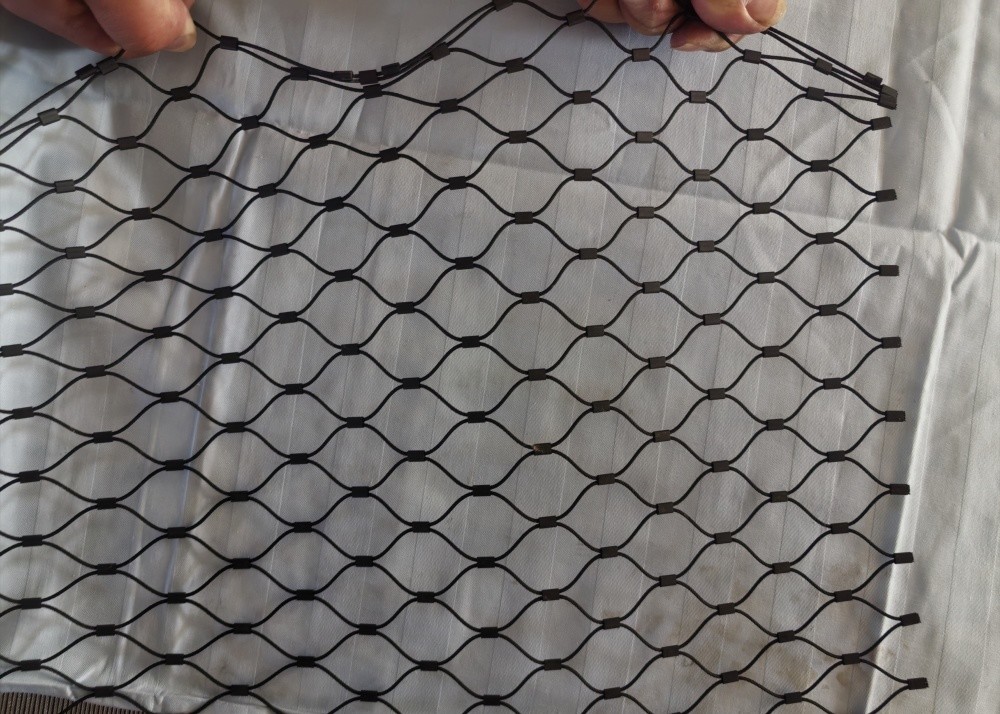

15mm*15mm Stainless Steel Wire Rope Mesh SS316 Oxide Black Wire Rope Net
Wire Rope mesh instruction:
Stainless steel wire rope mesh is composed of 304, 304L, 316, 316L process is divided into hand-woven, closed mouth, open buckle.Assembled by stainless steel wire rope with 100% seamless rope ferrule. Optimal stretch at 60°angle.easily install by special border design.
Wire diameter:1.0-4.0mm(Customized)1.2mm,1.5mm,2.0mm,2.5mm,3.2mm,4mm
Mesh size:13-300mm
The advantage of the cable Wire mesh:
High strength: The wire mesh is made of stainless steel 304 steel wire rope. It is strong and durable to prevent rusting, can withstand harsh use environment, can be bent and folded, easy to carry! It is made of stainless steel rope woven and fixed, very sturdy!
Aesthetic: neat and beautiful after installation, and the view through the woven mesh is very open.
Easy to install: you can fasten the edge of stainless steel rope netting with a tie, or you can fix it with a screw hook.
Widely used: It can be used in most occasions, balcony edge, road sides, building protection, zoo isolation, plant climbing, etc.
Cable Wire Mesh Application:
- Building Facade screens,
- Green wall systems
- Balustrade & Railing
- Bird protection netting,
The character of the rope mesh:
| Mesh Aperture |
Cable Wire rope Diameter |
Minimum Breaking load (KN) |
Wire Rope Type |
| 50*50mm |
2.0mm |
2.5 |
7*7 |
| 60*60mm |
3.0mm |
5.7 |
7*7 |
| 30*30mm |
1.5mm |
3.0 |
7*7 |
| 40*40mm |
2.5mm |
2,5 |
7*7 |
