Flexible Stainless Steel Ferrule Rope Mesh Net Zoo Aviary Mesh For Parrot
Stainless steel material details:

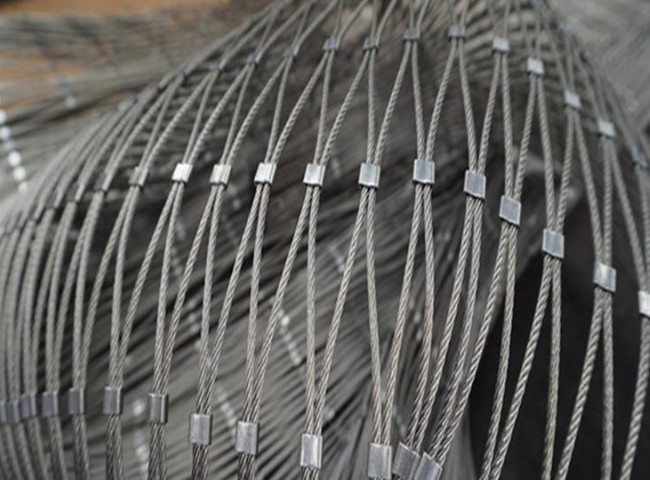

Stainless steel wire rope mesh is composed of 304, 304L, 316, 316L process is divided into hand-woven, closed mouth, open buckle.Assembled by stainless steel wire rope with 100% seamless rope ferrule. Optimal stretch at 60°angle.easily install by special border design.
Wire diameter:1.0-4.0mm(Customized)1.2mm,1.5mm,2.0mm,2.5mm,3.2mm,4mm
Mesh size:20-300mm
| Table 1: Wire Rope Ferrule Mesh Material Composition Table |
| Type |
C (%) |
Si (%) |
Mn (%) |
Cr (%) |
Ni (%) |
S (%) |
P (%) |
| 304 |
≤ 0.07 |
≤ 1.0 |
≤ 2.0 |
17.0–19.0 |
8.0–11.0 |
≤ 0.03 |
≤ 0.035 |
| 304L |
≤ 0.03 |
≤ 1.0 |
≤ 2.0 |
17.0–19.0 |
8.0–12.0 |
≤ 0.03 |
≤ 0.035 |
| 316 |
≤ 0.08 |
≤ 1.0 |
≤ 2.0 |
16.0–18.5 |
10.0–14.0 |
≤ 0.03 |
≤ 0.035 |
| 316L |
≤ 0.03 |
≤ 1.0 |
≤ 2.0 |
16.0–18.0 |
12.0–15.0 |
≤ 0.03 |
≤ 0.045 |
Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle.
Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure.
Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
Easy assembly and durability.The wire ropes are securely fixed with ferrules, making the assembly process become simple. Stainless steel material offers high load-bearing capacity,relatively low weight, and high tensile strength.
Flexible structure and easy packaging & transportation.It can be easily bent and folded without compromising its strength, safety, or other characteristics. Besides, it can be flexibly installed and rolled into small packages for transportation.
Excellent corrosion resistance & weather resistance.We offer stainless steel ferrule rope mesh made of 304, 304L, 316, and 316L materials. Their exceptional weather resistance makes them an ideal choice for outdoor applications.
Unique design.Each mesh can be designed and manufactured according to your specific project requirements. Rope diameter, opening size, and mesh aperture size can be customized, allowing for various design possibilities for designers.
The application of stainless steel rope mesh
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing

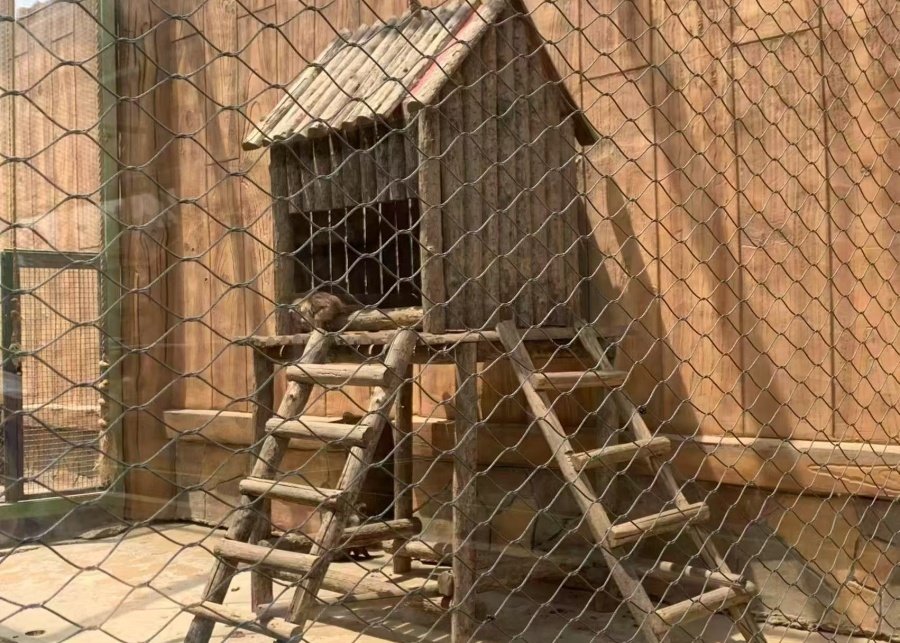

5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants
