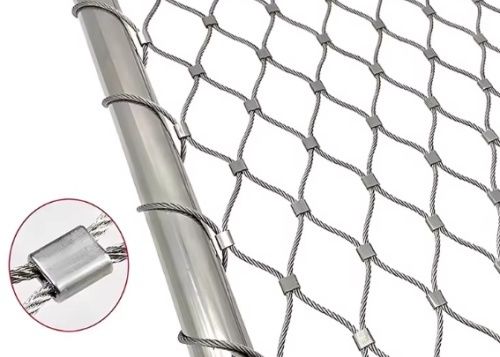

Flexible Stainless Steel Wire Rope Cable Mesh
Our 304 Stainless Steel Cable Mesh, also known as Zoo Mesh, combines flexibility and stability with a high strength-to-weight ratio. This innovative architectural product showcases the superior toughness and plasticity of austenitic stainless steel, making it an increasingly popular choice for modern design applications worldwide.
Product Overview
Stainless steel rope ferrule mesh is manufactured from premium 304, 304L, 316, or 316L stainless steel materials. As a versatile solution for architectural decoration and protection, it introduces contemporary design elements while providing reliable safety and durability.
Applications
Our safety protection systems are engineered for various bridge types including footbridges, highway bridges, and suspension bridges to prevent falls of people or objects. We also offer custom design solutions with optional features like glitter effects or LED modules to create unique project specifications. All materials are selected for exceptional durability and tensile strength.
Key Advantages
- Easy Assembly & Durability: Wire ropes are securely fixed with ferrules for straightforward installation. Stainless steel construction provides high load-bearing capacity with relatively low weight.
- Flexible Structure: Can be bent and folded without compromising strength, safety, or performance characteristics. Flexible installation and compact packaging simplify transportation.
- Corrosion & Weather Resistance: Available in 304, 304L, 316, and 316L materials with exceptional resistance to outdoor environmental conditions.
- Custom Design Options: Each mesh can be tailored to specific project requirements with customizable rope diameter, opening size, and mesh aperture dimensions.
Standard Specifications
| Wire Rope Structure |
Diameter (inch) |
Diameter (mm) |
Mesh Aperture (inch) |
| 7 * 19 |
5/32" |
4.0 |
3" * 3" |
| 7 * 19 |
5/32" |
4.0 |
3.6" * 3.6" |
| 7 * 19 |
5/32" |
4.0 |
4" * 4" |
| 7 * 19 |
5/32" |
4.0 |
5" * 5" |
| 7 * 19 |
5/32" |
4.0 |
6" * 6" |
| 7 * 19 |
5/32" |
4.0 |
8" * 8" |
Product Types
Stainless Steel Cable Mesh is available in two primary manufacturing styles:

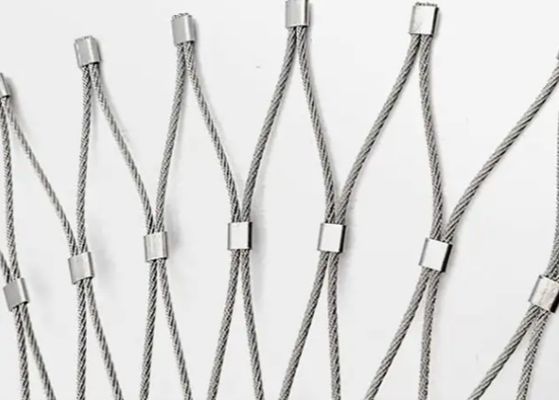

Ferrule Type (X-TEND Mesh): Features a more aesthetic and decorative appearance, ideal for architectural wire mesh applications in construction for both decorative and protective purposes.
Inter-woven Type: A pure hand-woven net offering lighter weight, enhanced flexibility, and higher transparency. Particularly suitable for zoo enclosures, aviaries, and fall protection netting.
Standard materials include AISI 304, 316, and 316L stainless steel. Wire rope strand structures are typically 7*7 for diameters under 2.5mm and 7*19 for larger diameters. Ferrules are primarily stainless steel, with aluminum, copper, and other materials available upon request. Custom surface treatments including oxidation and spray coatings can be applied to meet specific project requirements.
Application Areas
Widely used in construction for wildlife zoos, large animal enclosures,
aviaries, garden green walls, handrail infill systems, and safety mesh installations.
Product Gallery
