Stainless Steel Cable Rope Mesh Flexible Weaving Technology For Zoo Bird Netting

50 quare meters
MOQ
USD5-20/square meter
Price
Stainless Steel Cable Rope Mesh Flexible Weaving Technology For Zoo Bird Netting
Features Gallery Product Description Request A Quote
Features
Specifications
Material: AISI 304
Color: Silver,Black， Green, Blue, Yellow, Etc.
Opening Shape: Diamond
Application: Fencing, Security, Etc.
Hole Pattern: Diamond
Cable Diameter: 1.2mm To 4.0mm
Width: 0.5m To 8m
Length: Customized
Highlight:

stainless steel cable rope mesh

,

flexible weaving zoo bird netting

,

steel cable netting for zoo
Basic Infomation
Place of Origin: China
Brand Name: Yuhan
Certification: SGS
Model Number: Yuhan-EMS-002
Payment & Shipping Terms
Packaging Details: Wooden Pallet
Delivery Time: 10 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 square meters per day
Product Description
Stainless Steel Cable Rope Mesh with Flexible Weaving Technology
Premium stainless steel cable rope mesh featuring advanced flexible weaving technology, ideal for zoo bird netting, architectural applications, and safety protection systems.
Product Overview
Our stainless steel wire rope mesh is manufactured from high-quality 304, 304L, 316, or 316L stainless steel materials. Available in hand-woven, closed mouth, and open buckle processes, each mesh is assembled using 100% seamless rope ferrules for maximum durability and strength.
The unique 60° angle design provides optimal stretch characteristics, while specialized border design ensures easy installation and secure mounting.
Technical Specifications
Material AISI 304
Color Options Silver, Black, Green, Blue, Yellow, and Custom Colors
Opening Shape Diamond
Applications Fencing, Security, Architectural Design, and More
Hole Pattern Diamond
Cable Diameter 1.5mm to 3.2mm (Customizable: 1.0-4.0mm)
Width 0.5m to 8m
Length Customized to Project Requirements
Mesh Size 20-300mm
Standard Specifications
Wire Rope Diameter (D) Mesh Aperture (M)
7 * 19 (5/32" / 4.0mm) 3" * 3"
7 * 19 (5/32" / 4.0mm) 3.6" * 3.6"
7 * 19 (5/32" / 4.0mm) 4" * 4"
Key Advantages
  • Easy Assembly & Durability: Wire ropes securely fixed with ferrules for simple installation. Stainless steel construction provides high load-bearing capacity with optimal weight-to-strength ratio.
  • Flexible Structure: Can be easily bent and folded without compromising strength or safety. Rolls into compact packages for convenient transportation.
  • Excellent Corrosion Resistance: Available in 304, 304L, 316, and 316L materials with exceptional weather resistance for outdoor applications.
  • Customizable Design: Each mesh manufactured to specifications with customizable rope diameter, opening size, and mesh aperture for various design requirements.
Applications
Our safety protection solutions are suitable for footbridges, highway bridges, suspension bridges, and fall prevention systems. We offer personalized design solutions including optional glitter or LED modules for unique project requirements.
All safety protection facilities are constructed with high-strength materials to ensure excellent durability and tensile strength for long-term performance.
Product Images

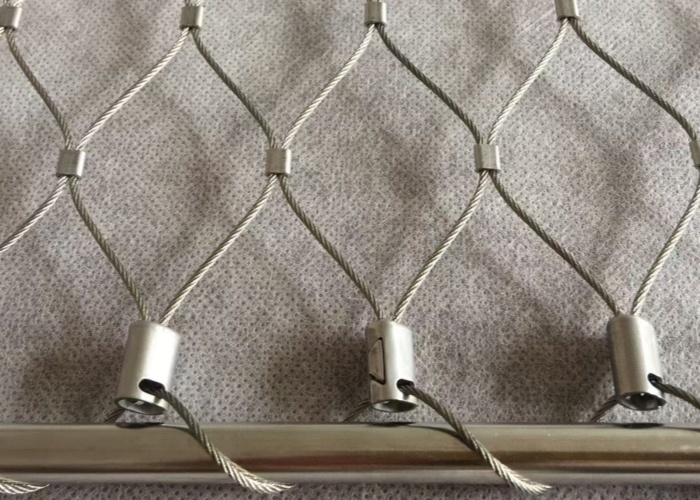

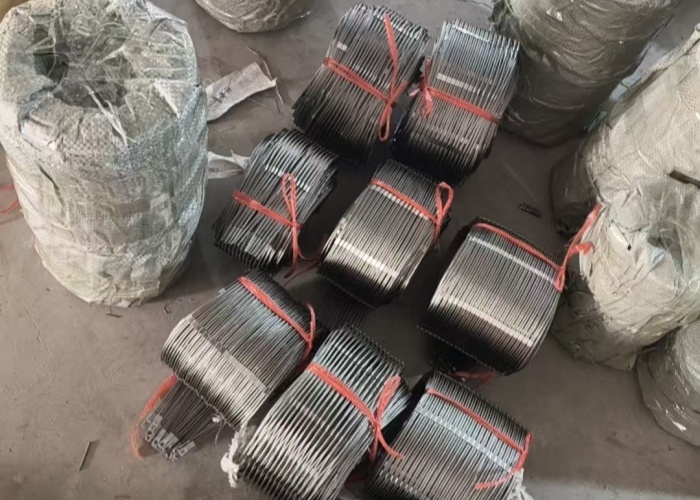

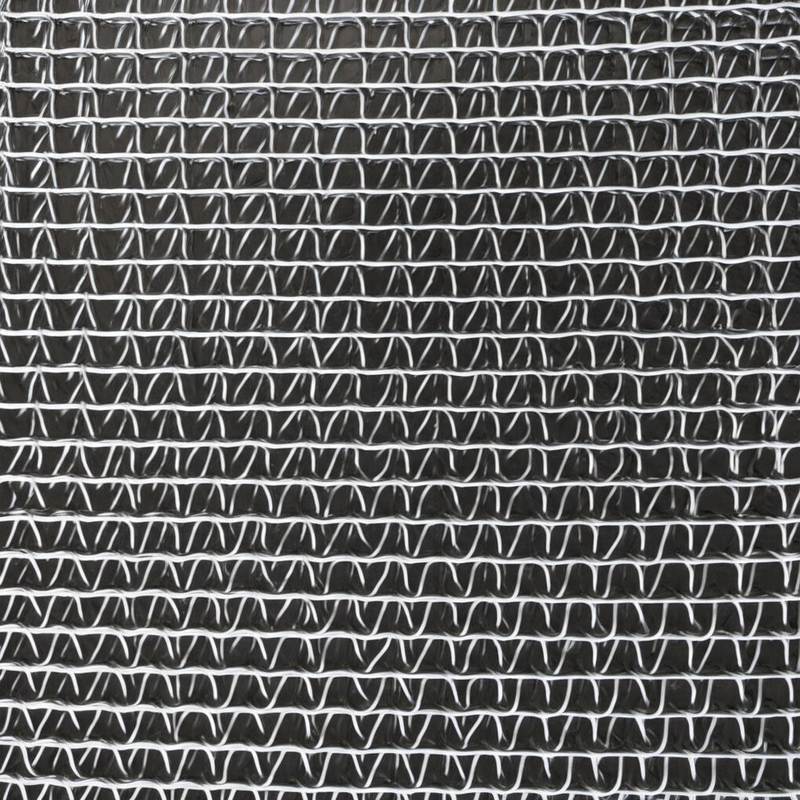

Stainless Steel Cable Rope Mesh Flexible Weaving Technology For Zoo Bird Netting 0 Stainless Steel Cable Rope Mesh Flexible Weaving Technology For Zoo Bird Netting 1 Stainless Steel Cable Rope Mesh Flexible Weaving Technology For Zoo Bird Netting 2 Stainless Steel Cable Rope Mesh Flexible Weaving Technology For Zoo Bird Netting 3
