Stainless Steel Wire Rope Mesh Ideal for Zoo Animal Enclosure and Garden Protection
Wire Rope Mesh instruction:

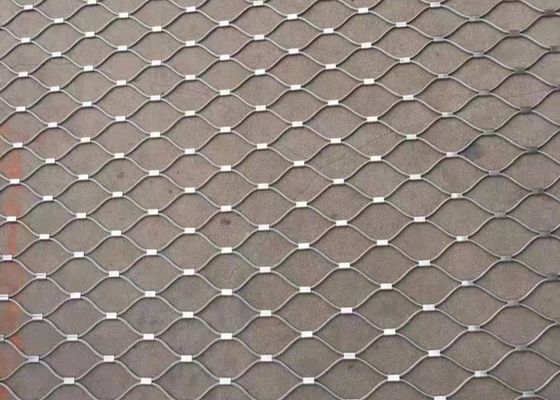

Stainless steel wire rope mesh is composed of 304, 304L, 316, 316L process is divided into hand-woven, closed mouth, open buckle.Assembled by stainless steel wire rope with 100% seamless rope ferrule. Optimal stretch at 60°angle.easily install by special border design.
Wire diameter:1.0-4.0mm(Customized)1.2mm,1.5mm,2.0mm,2.5mm,3.2mm,4mm
Mesh size:20-300mm
| Item No.s |
Cable Diameter |
Mesh Opening Size(W×H) |
| |
inch |
mm |
inch |
| BZ-32120F |
1/8 |
3.2 |
4.75 x 8.23 |
| BZ-32102F |
1/8 |
3.2 |
4 x 6.9 |
| BZ-3290F |
1/8 |
3.2 |
3.55 x 6.15 |
| BZ-3276F |
1/8 |
3.2 |
3 x5.2 |
| BZ-3251F |
1/8 |
3.2 |
2 x3.46 |
| BZ-24102F |
3/32 |
2.4 |
4x6.9 |
| BZ-2490F |
3/32 |
2.4 |
3.55x6.15 |
| BZ-2476F |
3/32 |
2.4 |
3 x 5.2 |
| BZ-2460F |
3/32 |
2.4 |
2.4x 4.16 |
Buckle type
Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle.
Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure.

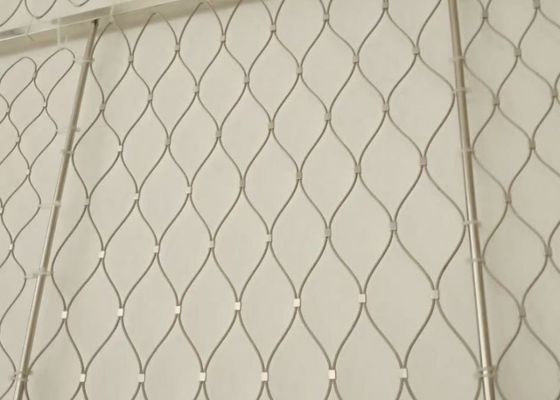

Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
Woven type
The stainless steel wire rope is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface. The whole mesh is integrated into one, which is durable, strong in corrosion resistance, beautiful and clear, and meets the use requirements of different environments. Generallyfor animal enclosures in zoo applications because it is easier to see through it when viewing the animals
Stainless steel cable mesh is made from stainless steel wire rope in various material type like AISI 304 , AISI 316 , AISI 316L etc. The selected wire rope has two main strand structures:7*7 and 7*19. Generally, when the diameter of the steel wire rope is less than 2.5mm, the strand structure is 7*7, and when it is longer than 2.5mm, the strand structure is 7*19. The ferrule material is usually stainless steel, sometimes aluminum, copper, and other materials are used. In addition, we can also oxidize or spray the surface of the stainless steel cable mesh according to customer needs.

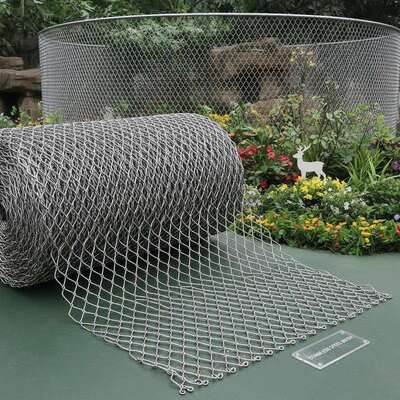

Stainless steel cable mesh is mainly used in the construction for wild zoos, large animal enclosure or aviaries, garden green walls, and also handrail infill or safety mesh. Stainless steel ferrule cable mesh and stainless steel inter-woven cable mesh have different characteristics and applications due to different weaving techniques. Compared with ferrule type rope mesh, the inter-woven type net is lighter in weight, more flexible, and has higher transparency, making it especially suitable for applications such as zoo mesh and fall protection netting. Ferrule type rope mesh is more aesthetically pleasing and decorative, and is often used as an architectural wire mesh for decorative and protective purposes in the construction field.
