Attribute | Value |
---|---|
Product Name | Rope Mesh |
Material | AISI 304 or 316 |
Cable Diameter | 1.5mm |
Color | Silver |
Mesh Size | 30mm |
Length | Customized |
Width | Customized |
Mesh Shape | Diamond |

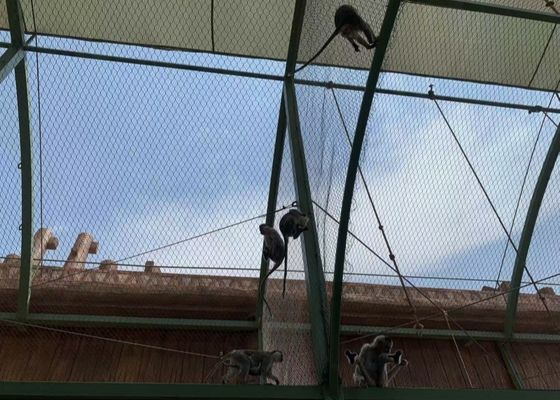

Flexible stainless steel rope mesh cable wire net is an ideal solution for zoo animal safety fences. Composed of high-quality 304, 304L, 316, or 316L stainless steel, this mesh is available in hand-woven, closed mouth, and open buckle configurations. Assembled with 100% seamless rope ferrules, it offers optimal stretch at a 60° angle and features a special border design for easy installation.
Available options:
Type | C (%) | Si (%) | Mn (%) | Cr (%) | Ni (%) | S (%) | P (%) |
---|---|---|---|---|---|---|---|
304 | ≤ 0.07 | ≤ 1.0 | ≤ 2.0 | 17.0-19.0 | 8.0-11.0 | ≤ 0.03 | ≤ 0.035 |
304L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 17.0-19.0 | 8.0-12.0 | ≤ 0.03 | ≤ 0.035 |
316 | ≤ 0.08 | ≤ 1.0 | ≤ 2.0 | 16.0-18.5 | 10.0-14.0 | ≤ 0.03 | ≤ 0.035 |
316L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 16.0-18.0 | 12.0-15.0 | ≤ 0.03 | ≤ 0.045 |
There are two types of buckles available:
Closed-type buckle: Features multiple steel wire ropes combined together, creating a stronger mesh with multiple joints at one end of the closure.
Open-type buckle: The entire mesh can be made with a single steel wire rope, offering easier installation and a more aesthetically pleasing overall effect.
The stainless steel wire rope is hand-woven from left to right, integrating the breaking force and toughness of the wire rope into the mesh surface. This creates a durable, corrosion-resistant, and visually clear mesh that meets various environmental requirements. Particularly suitable for zoo animal enclosures as it provides excellent visibility for viewing animals.
