Material | AISI 304 or 316 |
---|---|
Mesh Size | 25mm |
Cable Diameter | 1.5mm |
Length | 18m |
Width | 8m |
Shape | Diamond |
Durability | 30 years |
Sample | Free |

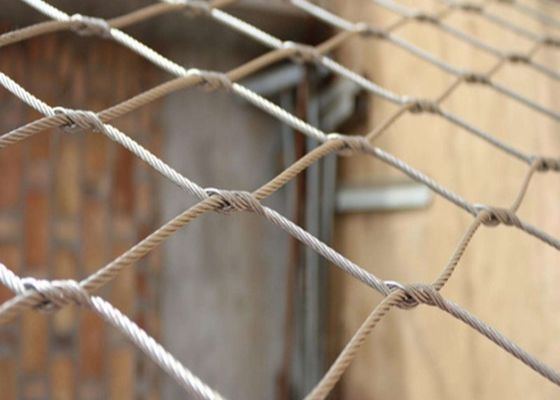

Wire rope ferrule mesh, also known as cable ferrule mesh or stainless steel ferrule rope mesh, is made of 304, 304L, 316 or 316L stainless steel materials. It combines both flexibility and stability with a high strength-to-weight ratio, fully reflecting the super-toughness and plasticity of austenitic stainless steel.
As an innovative architectural decoration and protection solution, wire rope ferrule mesh adds a fashionable element to modern architectural design and is increasingly favored by designers worldwide.
Type | C (%) | Si (%) | Mn (%) | Cr (%) | Ni (%) | S (%) | P (%) |
---|---|---|---|---|---|---|---|
304 | ≤ 0.07 | ≤ 1.0 | ≤ 2.0 | 17.0-19.0 | 8.0-11.0 | ≤ 0.03 | ≤ 0.035 |
304L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 17.0-19.0 | 8.0-12.0 | ≤ 0.03 | ≤ 0.035 |
316 | ≤ 0.08 | ≤ 1.0 | ≤ 2.0 | 16.0-18.5 | 10.0-14.0 | ≤ 0.03 | ≤ 0.035 |
316L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 16.0-18.0 | 12.0-15.0 | ≤ 0.03 | ≤ 0.045 |
