Wire rope ferrule mesh, also known as cable ferrule mesh or stainless steel ferrule rope mesh, is made of 304, 304L, 316 or 316L stainless steel materials. It combines both flexibility and stability with a high strength-to-weight ratio, showcasing the super-toughness and plasticity of austenitic stainless steel.
As an innovative architectural decoration and protection product, wire rope ferrule mesh adds fashionable elements to modern architecture. Available in two styles: ferrule type (stainless steel ferrule mesh, X-TEND Mesh) and inter-woven type (hand-woven wire rope mesh, knotted stainless steel cable mesh).
| Wire Rope Diameter (D) | Mesh Aperture (M) |
|---|---|
| 7 * 19, 5/32", 4.0mm | 3" * 3" |
| 7 * 19, 5/32", 4.0mm | 3.6" * 3.6" |
| 7 * 19, 5/32", 4.0mm | 4" * 4" |
| 7 * 19, 5/32", 4.0mm | 5" * 5" |
| 7 * 19, 5/32", 4.0mm | 6" * 6" |
| 7 * 19, 5/32", 4.0mm | 8" * 8" |

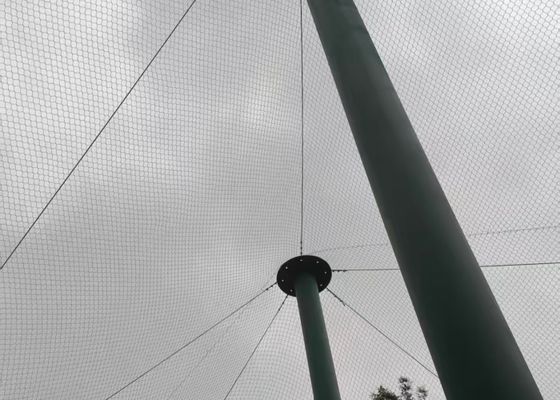

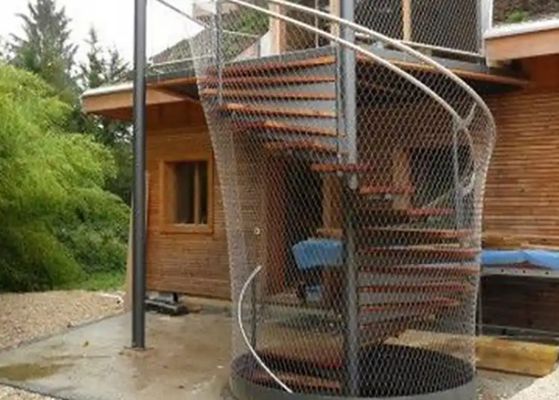

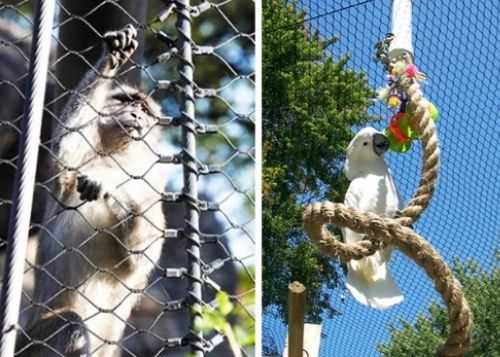

Stainless steel cable mesh is primarily used in construction for wild zoos, large animal enclosures, aviaries, garden green walls, and handrail infill or safety mesh. The inter-woven type offers higher flexibility and transparency, ideal for zoo mesh and fall protection, while ferrule type provides superior aesthetics for architectural decoration.
Available in 304, 316 and 316L stainless steel with standard 60° angle (custom angles available). The diamond hole pattern ensures strength and flexibility, with customizable opening sizes to meet specific requirements.
